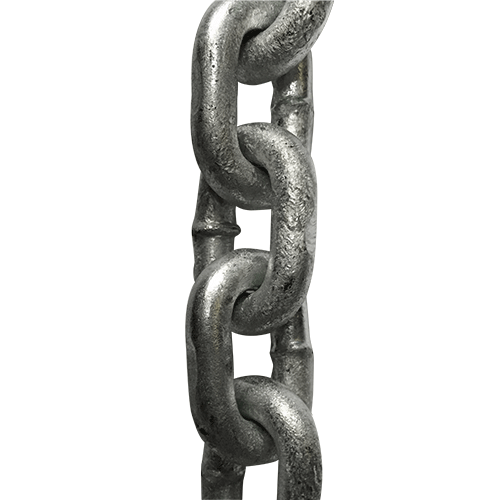

Description
| Part Number |
Diameter mm |
Inside Length (Pitch) mm |
Inside Width mm |
Outside Width mm |
Outside Length mm |
Safe Working Load 5:1 ton |
Minimum Breaking Load ton |
Weight kg/m |
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| CHGV06S | 6.0 | 18.6 | 9.5 | 21.5 | 30.9 | 0.32 | 1.60 | 0.86 |
| CHGV08S | 8.0 | 24.0 | 11.5 | 27.5 | 40.0 | 0.53 | 2.65 | 1.40 |
| CHGV10S | 10.0 | 29.6 | 13.5 | 33.5 | 49.5 | 0.83 | 4.15 | 2.23 |
| CHGV13S | 13.0 | 38.8 | 18.6 | 44.6 | 64.8 | 1.60 | 8.00 | 3.72 |
| CHGV16S | 16.0 | 47.0 | 22.0 | 54.0 | 79.0 | 2.31 | 11.55 | 5.62 |
