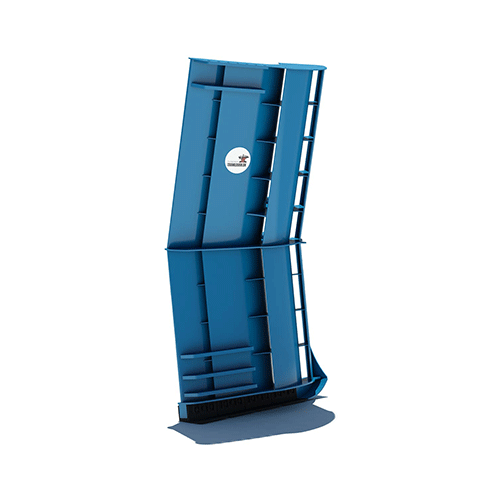

Type 14 VFD Heavy Duty

Sizes: 216 kg - as requested

The Type 14 VFA heavy duty semi pelagic trawl door is an all-round high aspect trawldoor, used for many different kinds of fishing setups such as bottom fishing and pelagic fishing.

Description

The best spreading semipelagic trawl door in the world.

Since the type 14 VFD was introduced in 2013 this trawl door became very popular worldwide.

The perfect Trwawldoors for fishing setups that require a high spreading power combined with extreme stability and low resistance .

No matter if the fishing requires bottom contact, or the fishing setup is with trawldoors flying off the bottom, these semipelagic doors are number one on the market.

Many trawlers in the North Atlantic fisheries have gone from traditional bottom door designs to our type 14 VFD. The increased spreading power combined with a fuel saving has rapidly increased the market share for this type of trawl door.

The type 14 VFD heavy duty semipelagic trawldoors are made with extra reinforcements on all stress and wear points. The trawldoors will last for a long time even working the worst rock bottom.

From the softest bottom in the baltic sea to the toughest rocky mountains in the Indian ocean and the Atlantic Ocean the type 14 VFD trawl door from Thyboron trawldoors are always the best option.

The type 14 VFD heavy duty version trawl door can be made in all weights and sizes. They are all fitted with bolted on manganesee wearshoes.



Technical Specifications
Size m2 Length + Height Shoe weight kg standard/heavy Weight plates kg/each Standard weight no shoes
5 1658 x 3064 216 300 10 x 18 1222
5.5 1732 x 3198 218 301 10 x 20 1315
6 1803 x 3325 273 376 10 x 22 1447
6.5 1871 x 3448 284 394 10 x 23 1853
7 1936 x 3565 322 442 10 x 25 1978
7.5 2061 x 3710 327 458 10 x 28 2210
8 2121 x 3818 334 466 10 x 29 2353
8.5 2179 x 3922 345 482 10 x 31 2474
9 2236 x 4026 357 501 10 x 33 2575
9.5 2291 x 4124 417 580 10 x 35 2739
10 2345 x 4221 422 589 10 x 37 2889
10.5 2398 x 4316 428 598 10 x 39 2991
11 2449 x 4449 451 635 10 x 40 3152
11.5 2500 x 4540 467 655 10 x 41 3246
12 2550 x 4630 475 666 10 x 43 3369

The doors are mounted with 10 pcs bolted on weightplates

Special weights on request.
