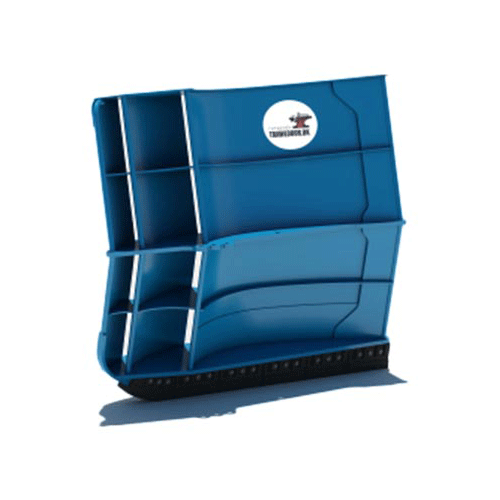

Type 04 Standard / Light

Sizes: 44" - 175"

Category: Brand:

The perfect trawldoors for all kinds of bottom fishing.

They are built in all sizes and weights.

Description

The perfect trawldoors for all bottom fishing setups. This is a further development of our type 2 door. This type 4 door is also a cambered V door but with two foils to improve the spreading power and reduce the resistance.

Since the introduction of the Type 4 trawldoors Thyboron Trawldoors has sold many sets of this trawl door model. It is still very popular worldwide, being used for all kinds of bottom fishing.

Twin rigging in shallow waters the type 4 is steady as a rock on the bottom due to the injector system and weight balance. Where many other door brands give up on spreading the gear, the type 4 has shown excellent performance.

Also in many special fishing setups, as single rig, twin rig, triple and quad rig the type 4 has proven itself with its wide range of adjustment possibilities. The type 2 is used on vessels using up to 12 trawls with 3 sets of Trawl doors.

The type 4 standard bottom doors are made in all sizes and weights. It is often built according to special customer requests in a light version and a heavy duty version.

Alle type 4 doors are fitted with either welded on manganese wearshoes or bolted on manganese wearshoes.



Technical Specifications
Size area/m2 weight/kg
44″ 0.88 110
47″ 1.04 140
50″ 1.25 195
53″ 1.41 210
55″ 1.54 230
60″ 1.81 282
63″ 1.95 320
66″ 2.25 360
72″ 2.64 450
76″ 2.92 535
80″ 3.17 560
84″ 3.39 590
88″ 3.73 650
92″ 4.41 780
96″ 4.91 890
100″ 5.19 970
104″ 5.76 1170
107″ 6.34 1420
110″ 6.73 1645
115″ 7.33 1716
120″ 8.00 1840
125″ 8.82 2053
130″ 9.36 2315
135″ 9.96 2505
140″ 10.76 2760
145″ 11.81 3115
150″ 12.70 3344
155″ 14.21 3594
160″ 15.39 4146
165″ 16.70 4492
170″ 18.02 4860
175″ 19.17 5100

Special weights on request.
