Sizes: 6mm - 32mm

Part Number: HKSLEY06 - HKSLEY32 Category: Hooks Brand: Chinese

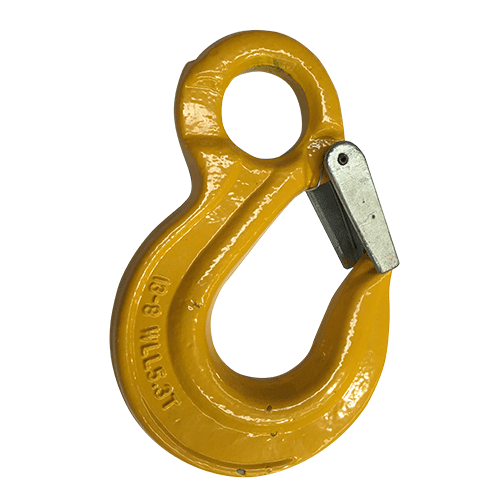

Sling Hook Eye.

Part Number	Size for Chain mm	D mm	K mm	P mm	A mm	T mm	H mm	WLL ton	WT kg
HKSLEY06	6	9	80	24	20	16	20	1.1	0.30
HKSLEY07	7.8	11	98	30	25	19	23	2.0	0.40
HKSLEY10	10	15	121	36	32	23	31	3.2	0.90
HKSLEY13	13	18	152	43	40	28	38	5.4	1.70
HKSLEY16	16	22	183	47	50	32	47	8.0	3.20
HKSLEY18	18.20	27	217	52	60	43	48	12.5	5.20
HKSLEY22	22	32	240	70	60	50	74	15.0	8.50
HKSLEY26	26	34	270	80	66	60	80	21.6	12.70
HKSLEY32	32	37	320	90	75	65	91	32.0	16.50
